Portal Slewing Crane |
|
|
 |
 |
|
|
|
 |
| |

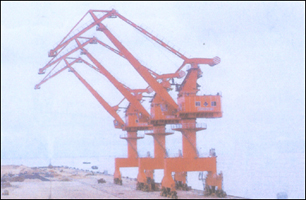

MQ Model portal crane is a multi-function large size loading and unloading equipment for handling of chandlery. It is applicable to all kinds of big docks and ports and can move freely along the pre-set rails. This model is widely used in various fields with high operating efficiency. This Model includes single girder type and single Rack Luffing type. Facilitated with compensating pulley system, the crane is capable of horizontal movement with load and joint operation for slewing, hoisting and luffing at any angles with load. The crane has the advantage of energy saving and high efficiency. The activities conducted by this machine are stable , reliable, and safe.
This model of crane is designed and manufactured according to GB3811-83 Criterion of Designing for Cranes, , GB6067-85 Safety Rules on Cranes, GB17495-1998 Technical Requirement on Portal Crane, JT400-1999 Safety rules on Portal Crane and other related standards.
|
|
| |
Main technical parameters |
|
| |
|
Lifting capacity(t)—Grap |
8t |
10t |
16t |
20t |
25t |
30t |
35t |
40t |
|
Working radius(m) |
Max |
25 |
30 |
33 |
30 |
33 |
50 |
33 |
30 |
|
Min |
8 |
8.5 |
9.5 |
9 |
9.5 |
13 |
9.5 |
9.5 |
|
Hoisting height(m) |
Above rail |
18 |
21 |
23 |
22 |
23 |
25 |
23 |
20 |
|
Below rail |
10 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
Hoisting speed m/min |
40 |
|
Luffing speed m/min |
26 |
|
Slewing speed r/min |
1.52 |
|
Traveling speed m/min |
26 |
|
Gate clean-up height(m) |
5 |
|
The base is apart from/the
gauge(m) |
10.5×10.5 |
|
Always turns the number/driving gear number |
8/4 |
12/8 |
16/8 |
16/8 |
16/8 |
24/12 |
24/12 |
24/12 |
|
Max wheel load(KN) |
≤250 |
|
Rail |
P50、QU80 |
|
Power source |
3-Phase
4-wire,380V,50Hz |
|
|
| |
|
|
|
Main technical parameters |
|
 |
| |
| |
|
Main capacity ×Radius |
60t×100m |
|
Aux capacity × Radius |
15t×105m |
|
Hoisting
height |
Main hook
80m
Aux hook 90m |
|
Span × Base |
16×16m |
|
Number
of traveling wheel |
16×4 |
|
Max
wheel load |
30t |
|
power
supply |
Cable drum 380v 50Hz |
|
|
| |
|
|
|
16t-40m Shipyard
Portal crane |
|
 |
|
|
|
Type |
MQ1640 |
|
Hoisting
capacity |
Hook |
16 |
5 |
|
Working
radius |
Max/Min |
13~20 |
13~40 |
|
Lifting
height |
above
rail/below rail |
+30~-10 |
|
Mechanism
working speed |
Hoisting
speed |
15m/min |
|
Luffing speed |
8m/min |
|
Slewing speed |
0.6r/min |
|
Traveling
speed |
25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤7.5m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
24/12 |
|
Max wheel
load |
<26 |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
20t-32m Shipyard
Portal crane |
|
Type |
MQ2032 |
|
Hoisting
capacity |
Hook |
20 |
10 |
|
Working
radius |
Max/Min |
10~20 |
10~32 |
|
Lifting
height |
above
rail/below rail |
+38/-8 |
|
Mechanism
working speed |
Hoisting
speed |
15m/min |
|
Luffing speed |
8m/min |
|
Slewing speed |
0.6r/min |
|
Traveling
speed |
25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤7.5m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
24/12 |
|
Max wheel
load |
<26 |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
30t-50m Shipyard
Portal crane |
|
 |
|
Type |
MQ3050 |
|
Hoisting
capacity |
Hook |
30 |
10 |
|
Working
radius |
Max/Min |
15~20 |
15~50 |
|
Lifting
height |
above
rail/below rail |
+65 / -18 |
|
Mechanism
working speed |
Hoisting
speed |
15m/min |
|
Luffing speed |
8m/min |
|
Slewing speed |
0.6r/min |
|
Traveling
speed |
25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤7.5m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
24/12 |
|
Max wheel
load |
<26 |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
50t-50m Shipyard
Portal crane |
|
 |
|
Type |
MQ5050 |
|
Hoisting
capacity |
Hook |
50 |
16 |
|
Working
radius |
Max/Min |
16~26 |
16~50 |
|
Lifting
height |
above
rail/below rail |
+50/-20 |
|
Mechanism
working speed |
Hoisting
speed |
15m/min |
|
Luffing speed |
8m/min |
|
Slewing speed |
0.6r/min |
|
Traveling
speed |
25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤7.5m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
24/12 |
|
Max wheel
load |
<250KN |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
50t-75m Shipyard
Portal crane |
|
Type |
MQ5075 |
|
Hoisting
capacity |
Hook |
50 |
40 |
15 |
10t |
|
Working
radius |
Max/Min |
22~35 |
22~40 |
22~65 |
25.2~75 |
|
Lifting
height |
above
rail/below rail |
+50 / -10 |
|
Mechanism
working speed |
Hoisting
speed |
2~10m/min |
2~2.5 m/min |
|
Luffing speed |
2~15m/min |
|
Slewing speed |
0.03~0.58r/min |
|
Traveling
speed |
0.25~25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤8.75m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
40/20 |
|
Max wheel
load |
<250KN |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
50t-90m Shipyard
Portal crane |
|
Type |
MQ5090 |
|
Hoisting
capacity |
Hook |
50t |
40t |
30t |
15t |
副鉤10t |
|
Working
radius |
Max/Min |
28~45m |
28~52m |
28~62m |
28~85m |
31~90m |
|
Lifting
height |
above
rail/below rail |
+55 / -12 |
|
Mechanism
working speed |
Hoisting
speed |
2~10m/min |
2~2.5 m/min |
|
Luffing speed |
2~15m/min |
|
Slewing speed |
0.03~0.30r/min |
|
Traveling
speed |
0.25~25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤10m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
48/24 |
|
Max wheel
load |
<26 |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
60t-60m Shipyard
Portal crane |
|
 |
|
|
|
Type |
MQ6060 |
|
Hoisting
capacity |
Hook |
60 |
15 |
|
Working
radius |
Max/Min |
20~30 |
23.5~60 |
|
Lifting
height |
above
rail/below rail |
+40/-15 |
|
Mechanism
working speed |
Hoisting
speed |
15m/min |
|
Luffing speed |
8m/min |
|
Slewing speed |
0.6r/min |
|
Traveling
speed |
25m/min |
|
Mechanism
working level |
A5 |
|
Rear swing
radius |
≤7.5m |
|
Span |
10.5 |
|
Total wheels
number/Driving wheels number |
24/12 |
|
Max wheel
load |
<26 |
|
Power source |
3-phase,4-wire,380V,50Hz |
|
|
|
|
50t-60m
Ship Portal Crane |
|
 |
 |
| |
|
 |
| |
| |

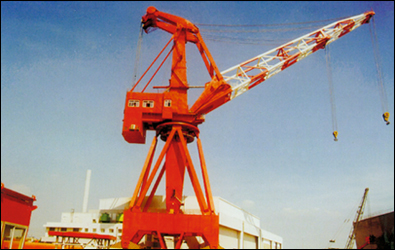

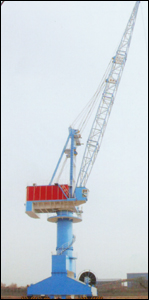

50t-60m portal crane is designed for the setting in the
shipyard and the large manufactory.
This crane is single boom structure which ensures a
horizontal path of the load
throughout luffing and stable
slewing at any angle with load .The
hoisting, luffing and slewing
mechanisms can be operated
individually or jointly with the
advantages of large radius and high
speed.
The cab is of panoramic-view type. The high quality marine
cables and controllers are provided
in electrical system. The central
slip-ring collector has the
advantages of large capacity and
good property and is suitable for
shipyard frequent operation.
Necessary electrical and mechanical safety protection devices
are provided for all mechanisms. |
|
| |
Main technical parameters |
|
| |
|
Main hook capacity ×Radius |
50t×35m |
25t×50m |
|
Auxiliary hook capacity ×
Radius |
15t×55m |
|
Lifting height |
Main
hook:+45m 10m
Aux hook: +50m 10m |
|
Rail gauge × Span |
10.5m×12m |
|
Traveling wheel number |
4×10 |
|
Max wheel
load |
≤30t |
|
Power
supply |
380v
50Hz
Cable drum |
|
|
| |
|
|
| |
Pro |
|
